ISO 27448:2009 Photocatalytic Self‑Cleaning Performance: Measurement of Water Contact Angle on Fine Ceramics and Advanced Ceramics

Inconsistent surface wetting measurements create batch release risk, slow QC throughput, and produce data that cannot withstand audit review. When wetting data is challenged in an external audit, the cost is rarely the re-test; it is a failed audit finding, a customer lot rejection, a paused certification, or in the worst case a recall traced to release decisions made on non-defensible data. Dropometer adds a standardised, traceable contact angle measurement step to your ISO 27448 test sequence; repeatable data at each timepoint and a documentation trail that supports lot release decisions and stands up on first request during external review.

What brings you here?

Who this is for
Lab Managers and QA teams responsible for surface performance validation who need faster, repeatable measurement and documentation without adding complexity to their ISO-aligned workflow.
Positioning
Dropometer handles the measurement, image capture, automated analysis, and documentation steps in your ISO test sequence. Your team controls the UV exposure apparatus and surface handling per your validated SOP. Together: repeatable, traceable wetting data that supports lot release decisions and audit review.
Last updated
June 9, 2026
Request Dropometer Quote View ISO 27448 Official Standard

Free download, no account required. A one-page protocol card your team can use directly in QC: operator steps, setup checklist, and reporting fields, formatted for lab use.

Talk to an expert - no commitment

Book a 20-minute application review with a surface scientist

Bring your current setup, sampling plan, and the measurement step you are trying to standardise. We will tell you where Dropometer fits, where it does not, and what a defensible workflow looks like for your samples.

Book a 20-minute review
Écrit par
Gurdeep Singh Saini
Holds a BASc in Mechanical Engineering (Ryerson) and an MASc from York University. He focuses on the custom AI behind the instrument.
COO at Droplet Lab
Lire la suite
Technical Review by
L’équipe du laboratoire Droplet
Droplet Lab builds precision instruments and software for surface science measurement, specialising in contact angle analysis and surface tension characterisation. Used by researchers across materials science, pharmaceuticals, coatings, and advanced manufacturing, Droplet Lab's Dropometer has contributed to studies published in peer-reviewed journals including Advanced Functional Materials (Impact Factor 19). The team combines instrument engineering with deep domain knowledge in wettability science with a focus on practical accuracy.
Lire la suite
Verified against ISO 27448
Written By

Gurdeep Singh Saini

COO at Droplet Lab

Holds a BASc in Mechanical Engineering (Ryerson) and an MASc from York University. He focuses on the custom AI behind the instrument.

Évalué par

L’équipe du laboratoire Droplet

Droplet Lab builds precision instruments and software for surface science measurement, specialising in contact angle analysis and surface tension characterisation. Used by researchers across materials science, pharmaceuticals, coatings, and advanced manufacturing, Droplet Lab's Dropometer has contributed to studies published in peer-reviewed journals including Advanced Functional Materials (Impact Factor 19). The team combines instrument engineering with deep domain knowledge in wettability science with a focus on practical accuracy.

Featured Studies & Publications

Research Paper Contact angle measurement with a smartphone
Research Paper Surface tension measurement with a smartphone using a pendant drop

Evidence box

Standard intent

This ISO standard specifies a test method for self-cleaning performance of semiconducting photocatalytic materials, using water contact angle as an index measured under UV illumination. It targets materials containing a photocatalyst or photocatalytic films; commonly semiconducting metal oxides such as titanium dioxide.

Dropometer role in workflow

Dropometer standardises image capture, baseline detection, and automated reporting for the contact-angle timepoints defined in your ISO test sequence. It has no built-in UV lamp or chamber; the exposure and handling sequence remains an operator-controlled, SOP-validated process.

Primary outputs (recommended minimum)
  • Static contact angle θ at defined timepoints, with replicates (median + IQR or SD)
  • A θ(t) trend (or a derived time‑to‑threshold index) to quantify self-cleaning activity
  • Zone tagging or mapping notes when nonuniform response is suspected
Calibration requirement

Acceptance criteria are site‑specific, establish them with reference samples and controlled challenge modes, and document the rationale. Re‑validate after changes to the UV setup, coating chemistry, fixtures, or handling environment.

Protocol defaults

Use sessile‑drop geometry on smooth, non‑porous surfaces with controlled reagent water, consistent droplet volume, and consistent timing per your validated method. Follow the current ISO revision used by your lab for the exact sequencing, light dose, and sample handling parameters.

Known limitations

The method does not include water-permeable substrates, rough surfaces that do not retain exposed water droplets, highly hydrophobic or superhydrophobic coatings, powder or granular materials, or visible light-sensitive photocatalysts.

Executive summary

Is this photocatalytic surface achieving the required wetting response under your validated UV exposure?

The method behind the standard assesses how a water droplet spreads as the surface approaches a superhydrophilic wetting state during UV exposure by tracking θ over time. Dropometer enables high-precision water contact angle measurements at the required timepoints so teams can compare lots, trend drift, and separate coating issues from test-setup variability.



Keep method boundaries clear across international standards

ISO 10678 tests photocatalytic activity via methylene blue degradation in aqueous medium; conceptually different from this standard's wetting-response metric. Separate standards cover air purification, antibacterial activity, and gas-phase removal. Do not substitute these into a report for this method.

"Contact angle only" is a partial match: Dropometer supplies the angle measurement, but not the UV delivery, environmental conditioning, or soiling procedure that your SOP may include.

How Dropometer Fits the Workflow

For Lab Managers focused on QC throughput

If your team is spending significant time per sample on manual image capture, angle estimation, and disconnected documentation, that time compounds across every lot. The Dropometer measurement step takes approximately 1.1 minutes per test point — dispense, capture, automated fit, export — leaving your operators focused on the UV sequence and handling protocol rather than data administration. The steps below show exactly where Dropometer slots into an ISO 27448 workflow and what it replaces.

~1.1 min

Per test point: dispense, capture, automated fit, export

Droplet Lab instrument workflow

Automated

Angle fitting, baseline detection, and report generation

Replaces manual estimation and offline calculation

Per-lot

Traceable records: lot, tool, operator, timestamp — generated at time of measurement

No post-session data entry required

Image Caption Here

Dropometer Photo

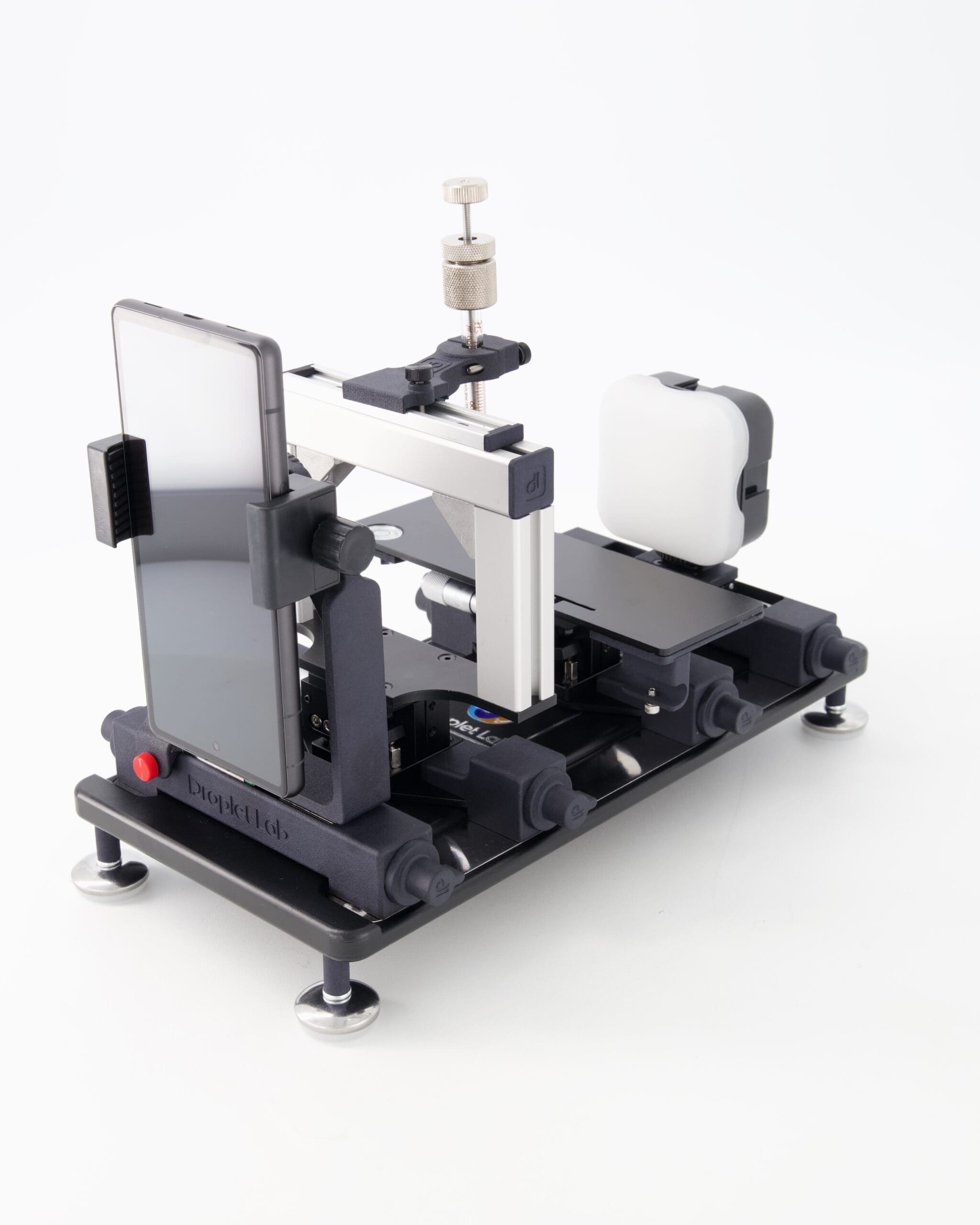

Fig. 1 — Dropometer measurement station (no integrated UV source; exposure is operator-controlled).

Image Caption Here

Measurement Photos

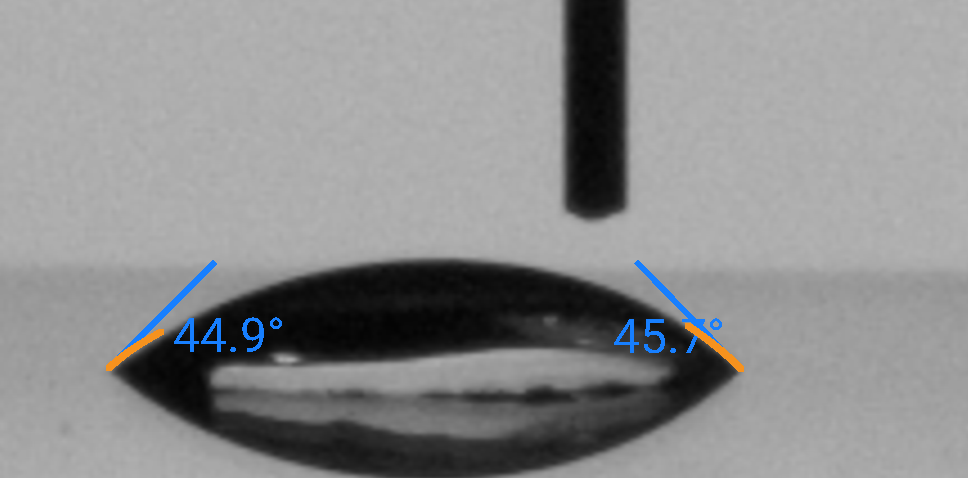

Fig. 2 — Sessile-drop contact angle capture on a coated surface.

1

Pre‑exposure baseline (clean surface)

Use case: Establish starting θ and measurement repeatability before the UV sequence.

  • Stabilize sample orientation and handling; document surface preparation per SOP
  • Measure θ at defined zones/replicates; report median + IQR/SD
  • Log the UV fixture configuration that will be used (instrument IDs, geometry, irradiance verification)
2

UV exposure sequence (external setup) + timed measurements

Use case: Quantify the rate and extent of the hydrophilic shift under the validated UV setup.

  • Execute UV irradiation per your lab’s ISO‑aligned procedure and record irradiation time exactly as defined in your SOP
  • At defined timepoints, measure θ on Dropometer using consistent droplet handling and timing
  • Trend θ(t) and compute a site-defined time‑to‑threshold metric if it correlates to your self-cleaning properties
3

Fouling/recovery study + triage (when applicable)

Use case: Evaluate self-cleaning materials under a controlled, relevant soil challenge and separate process drift from test noise.

  • If your plan includes an organic foulant film, apply it with a controlled method and document coverage controls
  • Repeat the UV + measurement sequence and compare recovery curves across lots and zones
  • Use mapping/zone tags to identify nonuniform response (edge effects, thickness gradients, masked regions)

Validated measurement approach

Independent benchmarking and publication-based validation references.

For QA Engineers who need audit-ready data

A wetting measurement is only defensible if the instrument producing it has been independently validated and if the data trail — lot, operator, instrument, timestamp — is generated at the point of measurement, not reconstructed afterward. The validation references below cover both instrument accuracy (benchmarked against KRÜSS DSA100E, a recognised reference instrument) and measurement system capability (Gage R&R). The calibration section that follows defines the ongoing controls your QMS needs to rely on this data during an external review.

Benchmark Validation

Our contact angle and pendant-drop surface tension methods have been benchmarked against KRUSS DSA100E reference measurements.

See peer-reviewed validation

Publication Evidence

Our instruments are referenced in peer-reviewed journals, theses, and conference publications.

Browse the full citations list

Measurement system validation — Gage R&R

The Dropometer passed a full Gage R&R study with repeatability and reproducibility within our acceptance criteria, which let us integrate it into our production QC workflow for surface wetting characterisation.

Brandon Barbee · QC Manager, Zeus Inc · polymer extrusion materials manufacturer

Calibration (so results are defensible)

For QA teams building or maintaining a QMS entry for contact angle measurement, these four controls form the minimum defensible implementation:



  1. UV source characterization: verify irradiance at the sample plane; define warm‑up and replacement rules.
  2. Measurement correlation: validate Dropometer against your reference workflow; define objective fit rejection criteria.
  3. Baseline + challenge datasets: establish distributions for “known‑good” and intentionally degraded samples to set PASS/MONITOR/FAIL gates.
  4. Ongoing controls: trend a reference coupon and blank, and investigate shifts before release decisions.

Example output: illustrative template (replace with your data)

Interpretation anchor: emphasize the shape and repeatability of θ(t) under the validated UV setup, not generic cutoffs.

Example: “TiO₂ photocatalytic film on ceramic substrate — self-cleaning performance index”

Gate Interpretation (site-defined) θ (baseline) θ after UV at Time-to-threshold Replicate spread Notes What to do
PASSMatches validated reference response___°≤ ___°≤ ___≤ ___°Uniform across zonesRelease / report result
MONITORSlower or less complete shift___°°–°–°–°Mild zone dependenceInvestigate + re-test
FAILDoes not achieve required response___°≥ ___°Not reached / ≥ ___≥ ___° or hotspotsStrong nonuniformityHold lot; corrective action

For Compliance Officers and operations leads focused on production losses

The cost of a measurement problem is rarely the measurement itself. It is the batch held pending re-test, the corrective-action report, the customer rejection when a lot ships against data that later can't be defended, the certification review that stalls when an auditor can't trace a release decision — and, at the extreme, a recall. If you have an external audit, customer qualification, or certification renewal on the calendar, non-defensible wetting data is an exposure you are carrying right now. Dropometer's zone tagging, reference-coupon trending, and time-series output shorten the triage loop and produce records that survive review — and the calculator below lets you model what that exposure reduction is worth using your own cost inputs.

Business impact — Before/After Dropometer

Metric Before Dropometer With Dropometer Results
Test consistency Manual capture and variable reporting Standardized capture + automated reporting Fewer repeat tests from operator-to-operator variation
Drift detection UV/handling drift found late Reference coupon trending highlights drift early Earlier warning prevents bad-batch release decisions
Root cause speed Coating vs UV vs handling unclear Time‑series + zone tagging accelerates triage Faster corrective action reduces production hold time
Documentation Disconnected notes and images Traceable, audit‑ready records (lot/tool/operator/time) Audit preparation time reduced; records defensible on first request

Ready to put a number against your own exposure?

Request a quote for your configuration, or talk it through with an application scientist first.

Request a quote Book a review

Instant ROI Snapshot

Calculate your savings in real time.

Result

≈0
hrs/month saved
≈$0
/month ROI

Where do these numbers come from? i You enter your current total time per test (dispense + record + analyze + save). The calculator assumes that our Dropometer reduces that workflow to ~1.1 minutes per test (dispense + capture + automated fit + export). Time saved per test = max(0, your time − 1.1 min). Monthly hours saved = (monthly tests × minutes saved per test) ÷ 60, and monthly savings = hours saved × labor rate.

QC‑ready protocol defaults (SOP card)

Goal: Repeatable determination of photocatalytic wetting‑response performance on coated surfaces by static contact‑angle testing, aligned with the ISO standard revision used by your lab.

Sample handling

  • Apply a no‑touch rule on the test face; use clean fixtures and defined gloves
  • Record time since cleaning/activation and storage conditions (sealed vs open rack)
  • Exclude visibly damaged areas or non-representative texture

Setup

  • Level the stage; define a zone plan (center/edge or functional regions)
  • Confirm test liquid quality and container cleanliness; document lot and storage
  • Verify the external uv light source irradiance at the sample plane and document the fixture configuration

Measurement (baseline method)

  • Deposit a small droplet of reagent water (sessile drop) and image promptly
  • Fit left/right angles and report θ per your validated analysis method
  • Keep volume, placement, and timing consistent within your validated conditions
  • Multiple replicates per zone; increase N when nonuniformity is suspected
  • Maintain strict separation between the standard reporting and other testing methods (e.g., dye bleaching, gas removal, bacterial assays)
  • Optional qualitative screens such as photocatalytic activity indicator inks (inks such as resazurin) can be useful for quick checks, but keep them out of the compliance report unless validated and specified by your QMS
  • If visible light performance is required, treat it as a separate, validated method (not a default assumption of this ISO method)

Method settings

Parameter Recommended Setting Technical Rationale
Standard the standard (confirm revision in your QMS) Defines a performance index via contact angle tracked under UV.
Geometry Sessile drop Repeatable for static contact angles on smooth films.
Test liquid Reagent water (site SOP, controlled purity) Impurities bias wetting and mask surface changes.
UV exposure apparatus External UV setup; document irradiance and geometry Required for the method; not provided by the measurement instrument.
Environment Site-defined temperature/humidity/airflow control Reduces drift during timed measurements.
Surface suitability Smooth, non‑porous; avoid texture‑dominated wetting Improves interpretability and sensitivity to chemistry.
Replicates Multiple per zone (site-defined) Supports statistics and reveals nonuniform response.
Reporting θ(t) trend + derived index + replicate spread Captures rate, extent, and uniformity.

Decision tree — triage and rule-out

Start: θ does not decrease as expected under UV, time‑to‑threshold increases, or replicate spread widens.

A) UV delivery problem suspected

Signals:

Reference coupon and test samples shift together; large day‑to‑day variability.

Rule-out:

Verify irradiance, alignment, warm‑up, and exposure geometry, confirm the timing record and radiometer calibration.

B) Coating / semiconductor performance problem suspected

Signals:

Blanks behave normally but photocatalytic samples respond weakly; strong lot dependence.

Rule-out:

Review coating process window, contamination control, and any pre‑activation steps; check material changes that can increase charge‑carrier losses or alter surface chemistry.

C) Handling / contamination variability suspected

Signals:

Hotspots, strong zone dependence, inconsistent repeat tests.

Rule-out:

Repeat with controlled handling and compare to a no‑touch control stored identically.

Interpretation

Static contact angle θ (per site SOP): Primary screening metric. Compare θ(t) to your validated baseline and to the reference coupon response under the same UV setup.
Time‑to‑threshold index (site-defined): Operationalizes performance for QC: how long it takes, under your validated conditions, to reach a defined low‑θ criterion correlated to field performance.
Replicate spread and zone dependence: Large spread suggests nonuniform films, partial shading, or localized contamination; mapping supports failure analysis and corrective actions.

Pitfalls and limitations

UV control dominates: differences in irradiance, geometry, or sample temperature can overwhelm material differences.
Soil challenge reproducibility: if a foulant is used, control the application method and document it; wetting response is otherwise not comparable across tests.
Surface texture and permeability: texture‑dominated wetting can invalidate comparisons and may be out of scope.
Method mixing: do not claim equivalence to photodegradation metrics (e.g. methylene blue), water treatment endpoints, or gas-phase removal metrics.
Scope alignment: the standard’s wetting metric is not designed to rank photovoltaic materials for solar cells, even though both are semiconductor technologies.

Legal note (standards + compliance)

This page summarizes how Dropometer can support workflows aligned with the standard for contact‑angle‑based performance assessment. It does not reproduce copyrighted standard text, does not confer certification, and does not provide the UV exposure apparatus. Always purchase and follow the official standard revision used by your organization and establish site‑specific acceptance criteria through validated studies.
