Cleanliness, Residue and Contamination Verification

Surface Cleanliness Verification and Residue Detection

Stop “visually clean” false-passes with quantitative surface cleanliness testing and verification

Turn surface cleanliness into a measurable, auditable gate using contact angle measurements so you can evaluate cleaning procedures, detect invisible contamination, and release parts with confidence.

Who this is for: Quality engineers, QA/QC teams, hygiene verification leaders, and process engineers responsible for surface cleaning, environmental cleaning, ATP testing, and cleaning verification across manufacturing, healthcare, food, and commercial cleaning environments.

Positioning: A fast, non-destructive alternative (or complement) to ATP test methods, enabling risk-based surface cleanliness verification where visual inspection and swab-based testing fall short.

Écrit par
Droplet Lab Technical Team
Reviewed by
Surface Science Specialist
Last updated
February 9, 2026
Request Dropometer Quote Talk to a Surface Science Specialist
Écrit par
zoya
No biography added yet.
Lire la suite
Written By

No biography added yet.

QC-Ready Summary

What this workflow does and what it does not

Quick technical reference for engineers and QA managers evaluating fit before reading further.

Evidence Box (QC-Ready)

Problem this solves

Surfaces pass visual inspection or even ATP testing, yet still fail due to invisible residue or uneven contamination—creating downstream defects, hygiene risk, or audit gaps.

Dropometer role in workflow

A rapid surface cleanliness testing tool that evaluates wetting behavior to quantify contamination risk after a cleaning step.

Primary outputs

Contact angle (10°–175°, 0.01° resolution, ±0.35° accuracy)
Advancing/receding/static contact angles
Surface energy (mN/m) via multiple models
Optional surface tension of liquids (cleaning chemistry monitoring)

Calibration requirement

Define cleanliness benchmarks by correlating wetting data to outcomes (defects, ATP test results, hygiene failures).

Protocol defaults

DI water probe liquid
Fixed-time measurement
≥5 replicates per zone
Median + IQR reporting

Known limitations

Does not identify contaminant chemistry
Not a replacement for ATP testing or microbial detection
Higher variability on porous or rough surfaces

Use-case navigator

What are you trying to solve?

Choose the operating problem first. This lets you frame the rest of the workflow around throughput pressure, failure investigation, or pre-bond quality control.

workflow fit

Is this the right screen for your process?

This is not a universal solution. Check the conditions below before investing further time.

Good fit if

Less relevant if

Executive Summary

What this page helps you decide quickly

Most cleaning processes rely on visual inspection, ATP swab tests, or inconsistent inspection methods. But surfaces that appear clean—or even pass an ATP test—can still carry organic contamination, residue films, or chemical contaminants that affect performance or hygiene.

This use case introduces a risk-based approach to surface cleanliness verification using contact angle measurements. Instead of relying solely on bioluminescence (ATP luminometer readings in relative light units), you measure how liquids interact with the surface.

This allows you to:

  • Detect invisible residue missed by ATP testing
  • Evaluate cleaning procedures quantitatively
  • Identify contamination hotspots across a surface area
  • Build a defensible quality control and hygiene verification system

Surface cleanliness is assumed, not verified

Most cleaning processes assume surfaces are clean if they look acceptable or pass a single-point ATP test. However, surface cleanliness is often non-uniform and influenced by invisible contamination.

  • Surfaces appear clean but fail coating, bonding, or sealing
  • ATP testing passes but defects still occur
  • Inconsistent hygiene verification across shifts
  • High rework due to unidentified contamination
  • Audit failures due to weak documentation of cleaning verification

Why It Happens

Why:

  • Cleaning agents, oils, or disinfectant residues remain after rinse

How to detect:

  • Higher contact angle (poorer wetting)

Corrective action:

  • Improve rinse water quality and cleaning procedures

Why:

  • ATP detects biological contamination (microorganisms, bacteria on a surface) but not chemical residues

How to detect:

  • Surface passes ATP test but fails wetting test

Corrective action:

Combine ATP with contact angle measurements

Why:

  • Handling, fixtures, and airflow create localized contamination

How to detect:

  • High variability across multiple test surfaces

Corrective action:

  • Zone-based testing and improved handling controls

Why:

  • Clean surfaces adsorb airborne contaminants over time

How to detect:

  • Increasing contact angle with time since cleaning

Corrective action:

  • Define time limits for use after cleaning

Why:

  • Different materials or finishes affect wetting

How to detect:

  • Persistent variation even after cleaning

Corrective action:

  • Create material-specific cleanliness benchmarks

Not sure which root cause applies to your process?

A surface science specialist can review your failure history and help you identify whether a surface screen would add a useful upstream gate.

For Compliance Officers and QA Managers

Building a defensible pre-bond inspection record

Surface readiness measurement produces the type of numeric, traceable output that subjective visual methods cannot. If your quality system requires documented evidence of process control at each stage for NCR responses, CAPA files, incoming inspection records, or supplier audits contact angle measurement provides that evidence in a format your QA documentation already requires.

What to Measure

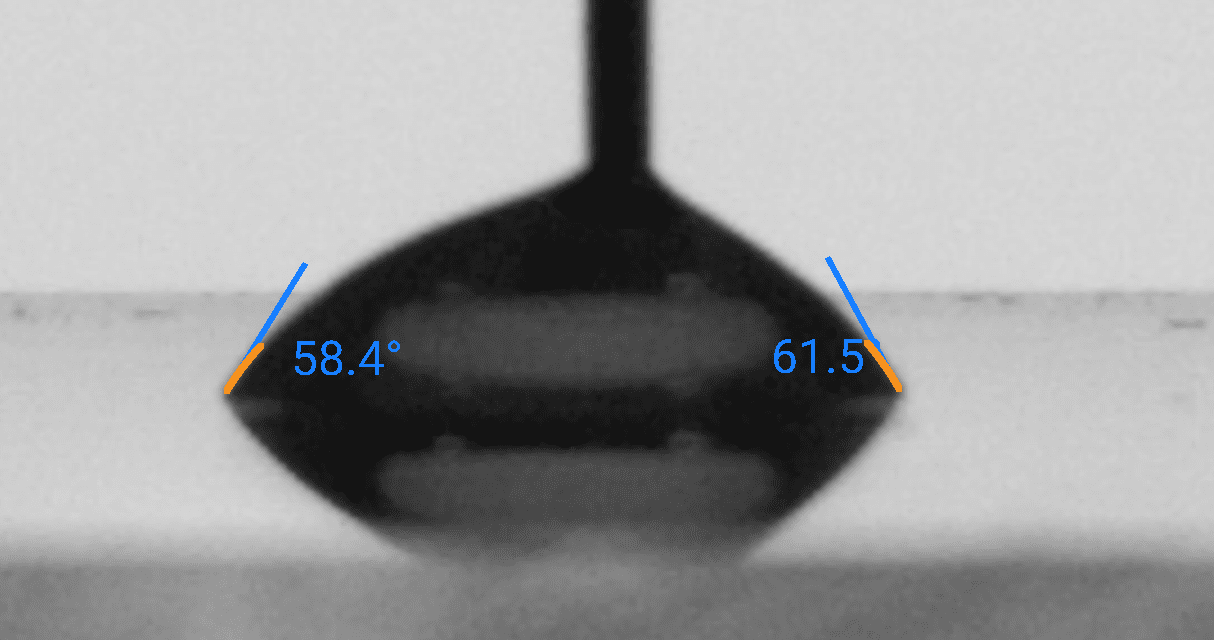

Fixed-time contact angle

Why it matters: Sensitive to residue and contamination

How to interpret: Higher contact angle = higher contamination risk

When it is not enough: Cannot identify contaminant type

Surface variability (IQR/SD)

Why it matters: Detects uneven contamination

How to interpret: High spread = contamination hotspots

When it is not enough: Does not specify contamination source

Advancing/receding angles

Why it matters: Indicates surface heterogeneity

How to interpret: Large hysteresis = residue or roughness

When it is not enough: Affected by rough surfaces

Surface energy

Why it matters: Differentiates substrate vs contamination

How to interpret: Deviations from baseline indicate contamination

When it is not enough: Not chemical identification

ATP testing (comparison tool)

Why it matters: Detects biological contamination via bioluminescence

How to interpret: Measured in relative light units (RLU) using a luminometer

When it is not enough: Cannot detect non-biological residue

Validated measurement approach

Independent benchmarking and publication-based validation references.

Benchmark Validation

Our Contact angle and pendant‑drop surface tension methods have been benchmarked against KRÜSS DSA100E reference measurements.

See peer‑reviewed validation

Publication Evidence

Our instruments are referenced in peer‑reviewed journals, theses, and conference publications

Browse the full citations list

How Dropometer Fits Your Workflow

A risk-based cleaning verification approach

1

Define cleanliness requirements

Identify what “clean” means (sterile, defect-free, hygienic).

2

Establish baseline

Measure known clean surfaces to create a benchmark.

3

Routine monitoring

  • Perform contact angle measurements after each cleaning step
  • Combine with ATP swab testing where biological contamination is critical
4

Investigate deviations

  • High contact angle → residue issue
  • High variability → localized contamination
5

Document and audit

  • Store results digitally for quality assurance and audit compliance

“We completed our gage R&R study on the unit and it performed very well.”

Brandon Barbee, Corporate Quality Engineer - Zeus Industries - Polymer Manufacturing

Download the Pre-Bond Surface Screening SOP Template

An editable SOP template your team can adapt for your substrate, adhesive, and preparation route. Includes measurement protocol, gate-setting guidance, and a QC log format ready for your documentation system.

Baseline + gates (calibration first)

Define PASS / MONITOR / FAIL

QC-Ready Quick Protocol (SOP Card)

Simple checklist for pre-bond release gating

Goal: Prevent adhesive failure before bonding by screening surface readiness and triggering corrective actions before assembly.

Sample Handling

  • Avoid cross-contamination
  • Standardize cleaning staff procedures
  • Record cleaning conditions

Setup

  • Stable lighting and environment
  • No condensation

Measurement

  • Apply droplet (≥0.05 µL)
  • Capture contact angle at fixed time
  • Test ≥5 spots

Release Rules

  • Combine with ATP test swabs for hygiene monitoring
  • Use for routine monitoring and environmental cleaning verification

Decision Tree (Triage)

It shows whether the surface is wetting the test liquid consistently enough to support your site-defined pre-bond screening criteria.

ROI Calculation

Annual Benefit = Scrap avoided + Rework avoided + Time saved

Instant ROI Snapshot

Calculate your savings in real time.

Result

≈0
hrs/month saved
≈$0
/month ROI

Where do these numbers come from? i You enter your current total time per test (dispense + record + analyze + save). The calculator assumes that our Dropometer reduces that workflow to ~1.1 minutes per test (dispense + capture + automated fit + export). Time saved per test = max(0, your time − 1.1 min). Monthly hours saved = (monthly tests × minutes saved per test) ÷ 60, and monthly savings = hours saved × labor rate.

Pitfalls + Limits

Use these guardrails when communicating and operationalizing results

  • ATP detects only biological contamination, not chemical residue
  • Contact angle does not identify contaminant type
  • Rough surfaces increase variability
  • Must use a risk-based approach combining methods

Use wetting metrics as an upstream quality gate, then confirm final suitability with your established bond-strength acceptance tests.
